Figure 5

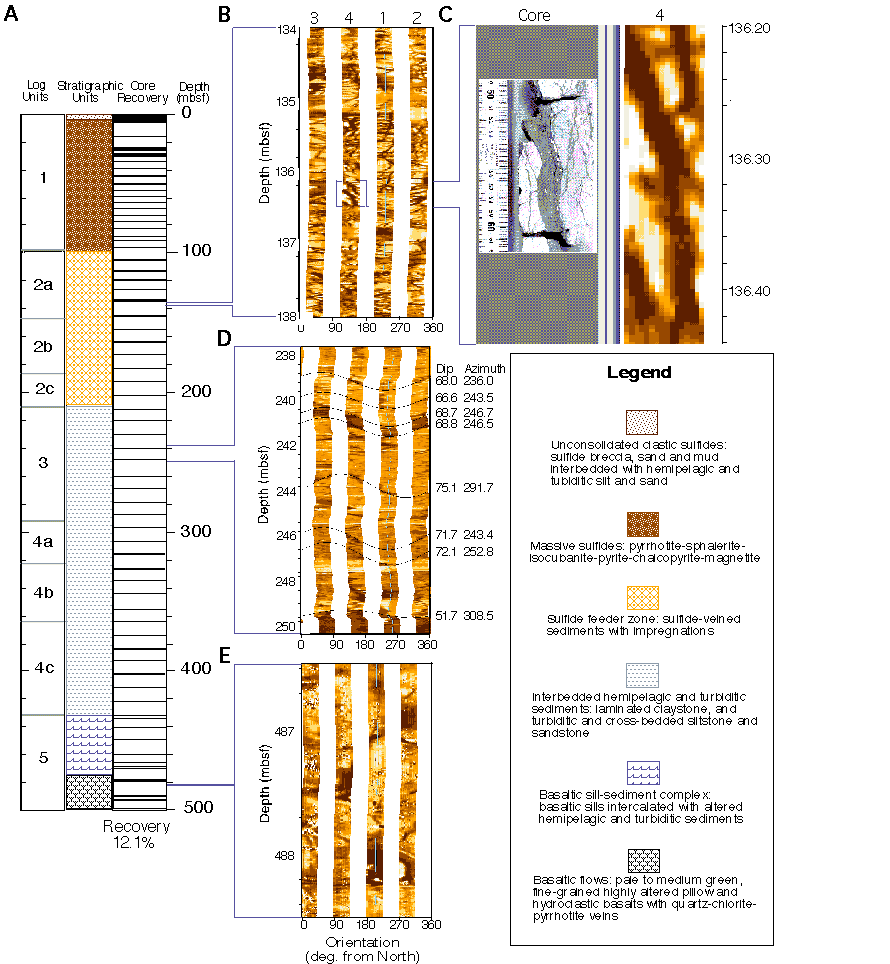

Results from ODP Hole 856H in the Bent Hill area of the Middle Valley, northern Juan de Fuca ridge. Core recovery, stratigraphic and log units (A), FMS and core images from the sulfide feeder zone (B & C), FMS images of fractures and possible fault within layered sediments (D), and the underlying pillow basalts (E).
