Figure 6

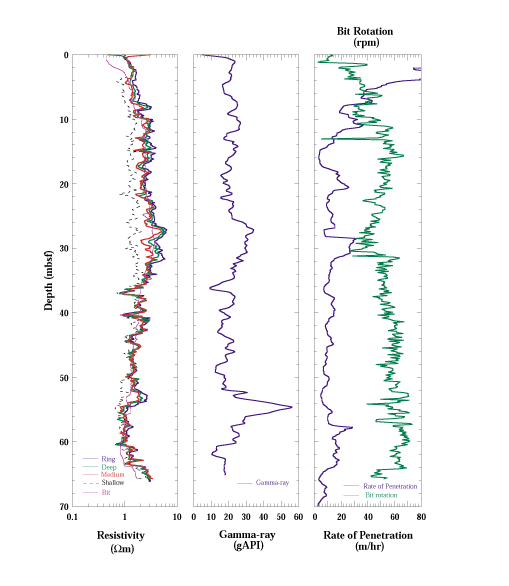

Log curves obtained from the resistivity at the bit tool in Hole 1188B. The left panel shows five logs of electrical resistivity with different depths of investigation and vertical resolution. In the middle, the gamma ray log is displayed. The right plot exhibits the rate of penetration and bit rotation.
