Figure 10

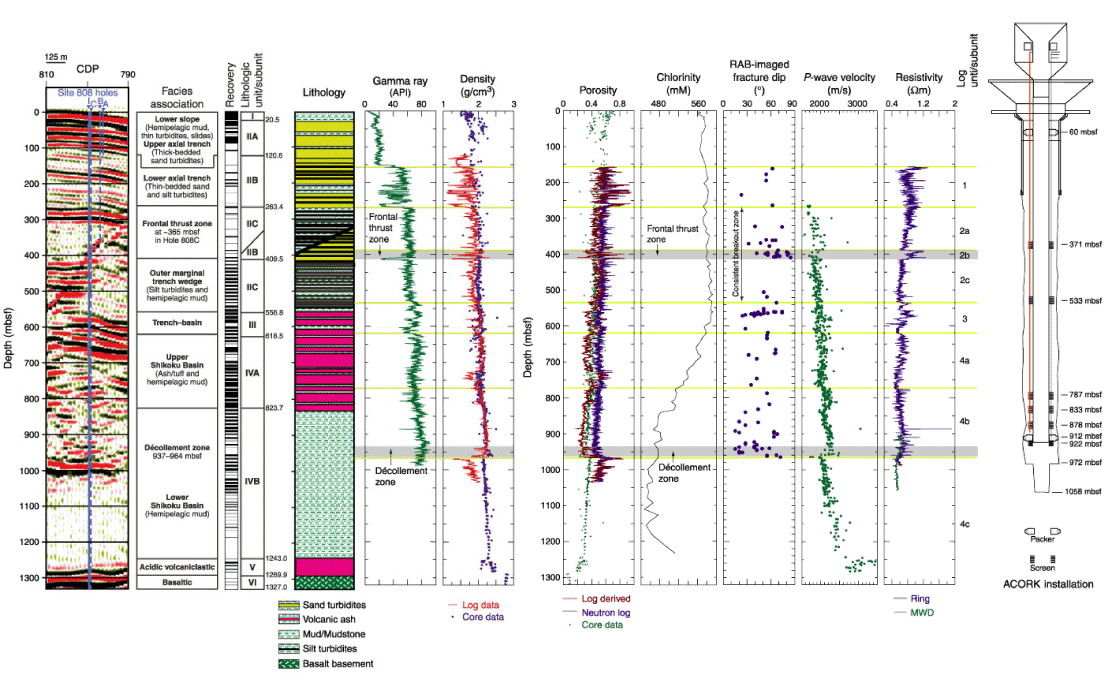

Site 808 summary diagram showing combined results of Legs 131 and 196. From left to right: depth-converted seismic reflection data, core-based facies interpretation, core recovery, core-based lithologic units and lithology, log gamma ray, core and log density, core and log porosity (computed from the density log using core grain density values), pore water chlorinity, fracture dip from RAB images, core P-wave velocity, log resistivity, log units, and a schematic diagram of the Advanced CORK (ACORK). CDP = common depth point, MWD = measurement while drilling.
