Figure 8

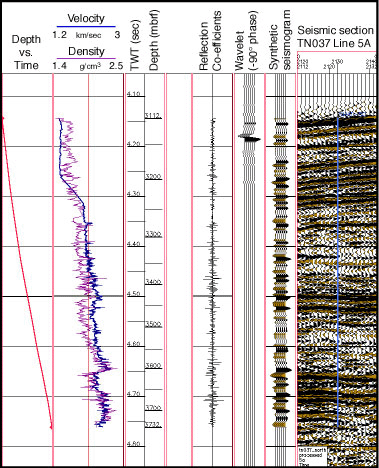

Steps in synthetic seismogram generation for Hole 1207B, including the input density and velocity logs, reflection co-efficient series, and the synthetic. Positive reflections are colored black, and negative reflections in brown.
